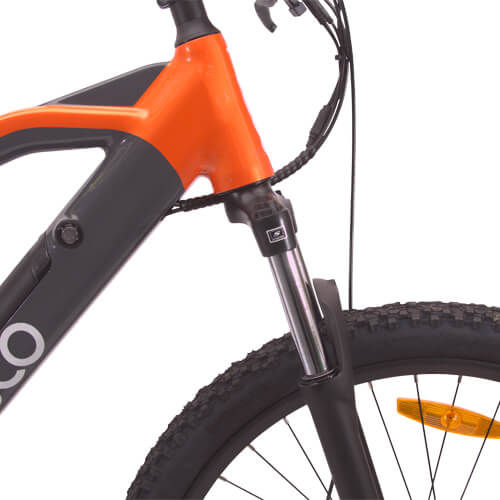

The TEBCO Crosstail is an electric cross country bike made for adventure or leisure! This e-bike has you covered for all things trails and tracks!

FEATURES
650B Wheels / alloy frame
Weight– 25kg including battery
Max. speed 25kmh / Max. range 100km
250W Motor / 3 Level Torque Sensing
36V 14Ah Samsung lithium battery
Latest in-frame battery design
High Quality 2.2in Kenda K1027 Tyres
7 Speed Shimano Trigger Shifters
Colour Indicator / Trip Computer / Speedo / Battery Gauge
Tektro Aries disc brakes front and rear

Mechanical

Frame
Aluminum alloy material, 548 MTB eel Frame
Wheel Size
650B 36H Front and Rear
Fork
Suntour XCT-ATB DS 27.5″ Non-teethless 100mm Non Lockout
Handlebar
PROMAX HB3188SP x 31.8 / R28 / Length: 700mm
Stem
PROMAX MA-400 E:70MM & 28.6 x 70 x 31.8 / Height: 37mm
Seatpost
PROMAX SP-252 & 31.6 x 350MM ENC
Seat Clamp
PROMAX 335QX/Black
Saddle
SR PL A059DRO Sporty Saddle
Shifters
SHIMANO ASL-M3157RC / Length: 2400mm / 7S
Derailleur
SHIMANO ARDTY500D
Rims
PARWEIER P23D 27.5”
Hubs
MODUS Aluminum Hub JA159F-DSE-QR
Spokes
12g 2.4mm F / 12g 2.6mm R Stainless Steel
Tyres
KENDA K1027 27.5 x 2.2in Black
Cranks
PROMAX R42P/32 170MM 42T
Pedals
WELLGO B087DU
Chain
Z7 / RB / 116L / PPO
Brakes Front
TEKTRO Aries Mechanical Disc
Brakes Rear
TEKTRO Aries Mechanical Disc
Brake Levers
WUXING 240PPD/4 Locking With Power Cut Off
Electrical

Motor
XAD 36V / 250W / Model: 05RX 26” / Drop Out: 136mm
Controller
15Ah LISHUI Brushless LSW1155-59M
Battery
36V 14Ah / SS 3500MAh / 40pcs
Battery Life
Up to 800 recharges from flat
Battery Weight
2.4kg
Display Panel
Velofox DM07
Pedal Activation
Torque Sensing Bottom Bracket
Charger
Sans 36V 2Amp Lithium AU Compliant
Main Cable
JULET 1T4 FZ-YH1T4A-2352A9-400MM
Audible Warning
HONKA HOOTA Black
Max Speed
25kmh
Max Range
100kmh 1:1 Pedal Assist
Bicycle Weight
25kg incl battery

Sizing

Length
1880mm
Handlebar Height
1080mm
Max Seat Height
1060mm
Min Seat Height
840mm
Step Over
730mm


Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
